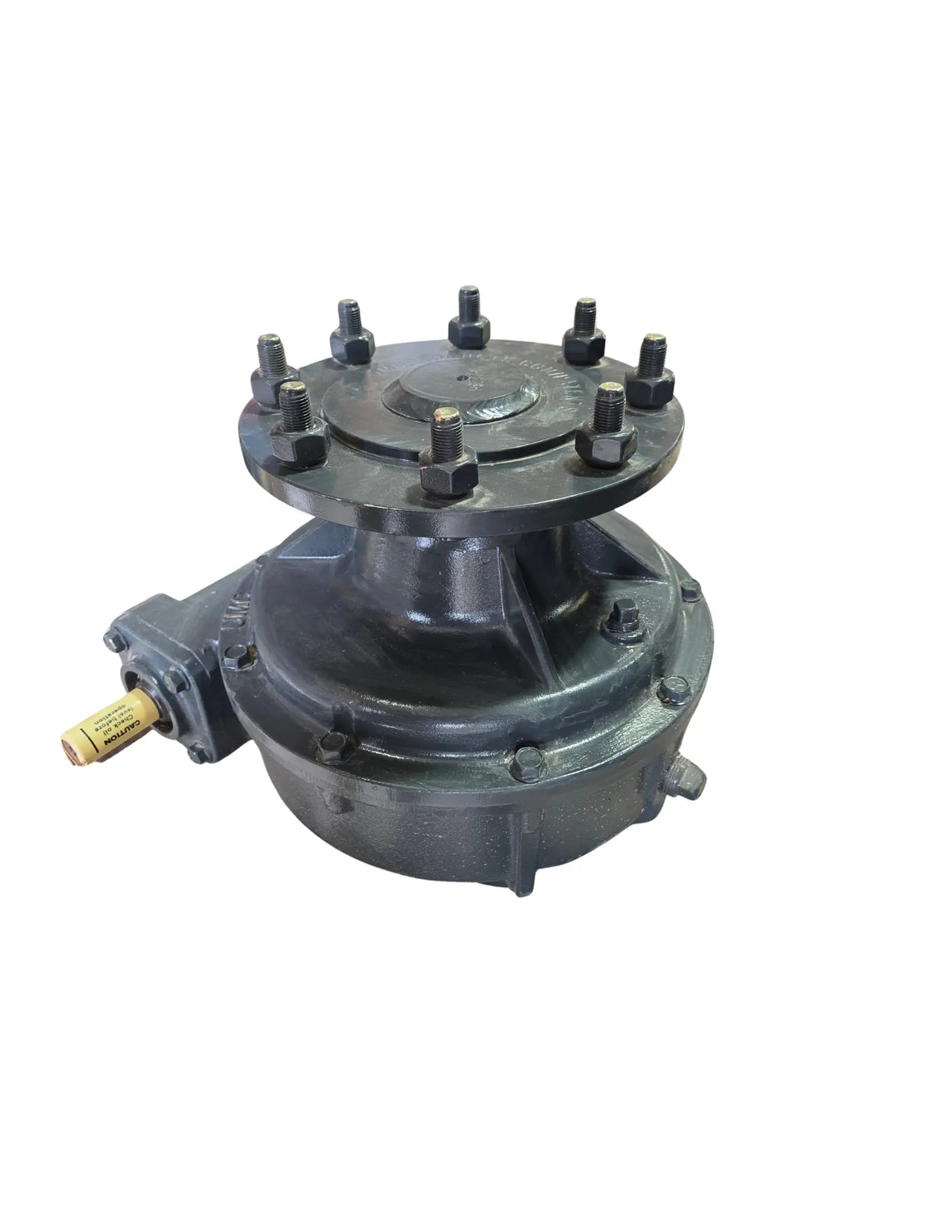

UMC 765-UV-AD Gearbox

The UMC 765-UV-AD Gearbox is a heavy-duty 52:1 gearbox designed for center pivots and lateral/linear irrigation systems operating in demanding conditions. It is built for applications such as corner systems, lateral carts, heavy towers, high annual operating hours, and extreme field conditions.

The 765-UV-AD features a 2.50-inch extended steel output shaft, 9-bolt mounting pattern, large output bearings, and UMC's vented internal diaphragm system to help minimize internal pressure buildup and reduce the risk of oil leaks. It can also serve as a direct replacement in applications using 52:1 gearboxes as standard equipment.

Specifications & Features

• Brand: UMC
• Model: 765-UV-AD
• Gear Ratio: 52:1
• Application: Center Pivot and Lateral/Linear Irrigation Systems
• Output Shaft: 2.50 in. Extended Steel Shaft
• Mounting Pattern: 9-Bolt
• Gear Design: 25° Pressure Angle, Full Recess Action
• Input Shaft: Dual-Ended with Hub Cap
• Seals: Cartridge Input and Output Seals
• Seal Protection: External Input and Output Seal Protectors
• Oil Plugs: 3/4 in. Fill and Drain Plugs
• Lubrication: Extreme-Pressure Worm Gear Oil
• Vented internal diaphragm with large expansion cavity
• Enhanced gear material designed for increased load capacity and reduced gear wear
• Large output bearings for demanding applications
• Extra-long carriage bolts for use with reinforced rims
• Bronze gear available as an option
• UMC Four-Rib Design®
