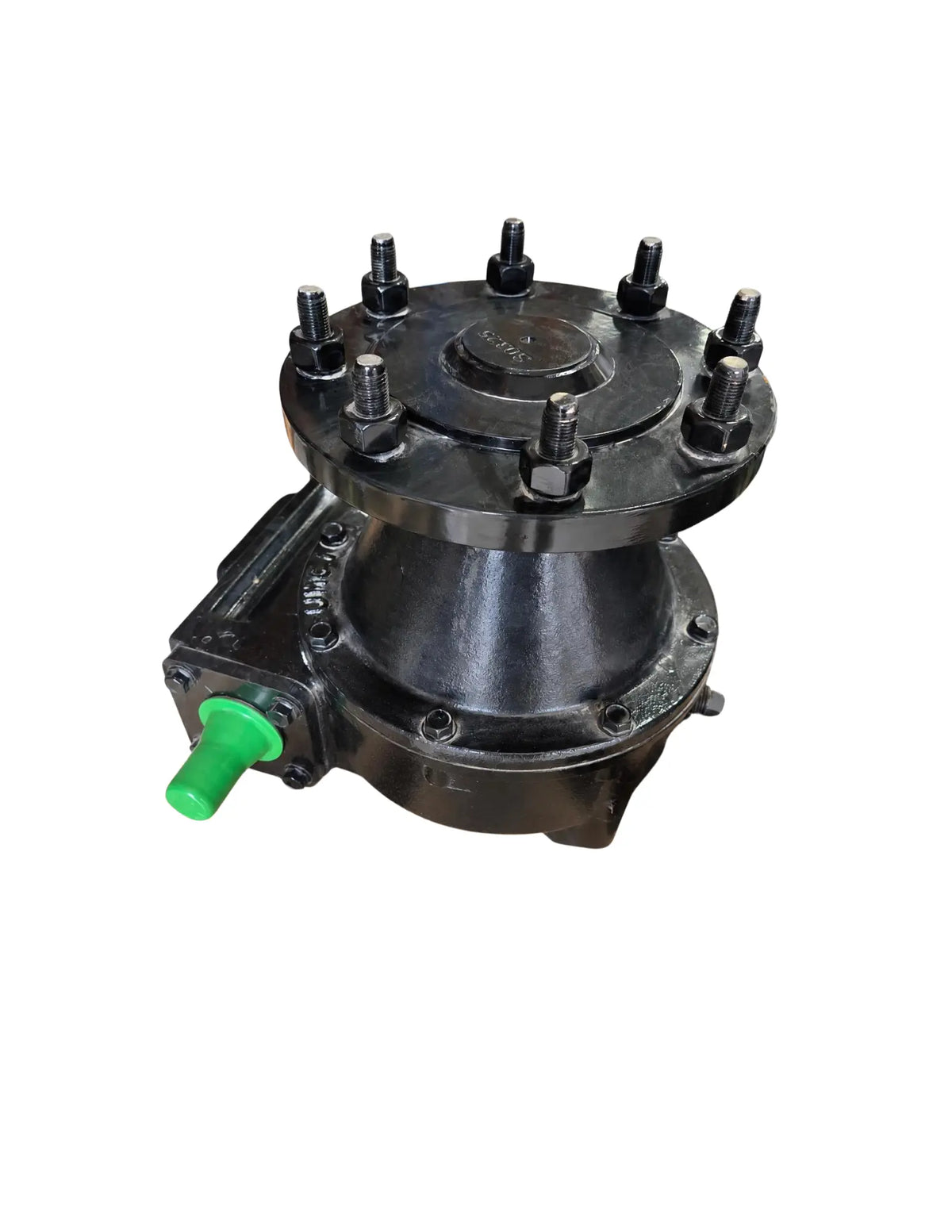

UMC 745-U-AD Gearbox | 50:1

The UMC 745-U-AD Gearbox is a heavy-duty gearbox designed for center pivots and lateral/linear irrigation systems. It is well suited for heavy spans, lightweight lateral/linear carts, and corner steering applications.

The 745-U-AD features a 50:1 gear ratio and 2.50-inch steel output shaft, along with larger output bearings to handle increased overhung loads. Enhanced gear materials help increase load capacity, reduce gear wear, and lower operating temperatures for dependable performance in demanding irrigation applications.

Specifications & Features

• Brand: UMC
• Model: 745-U-AD
• Gear Ratio: 50:1
• Application: Center Pivots and Lateral/Linear Irrigation Systems
• Output Shaft: 2.50 in. Steel
• Mounting Pattern: 11-Bolt
• Input Shaft: Dual-Ended with Hub Cap
• Input Seals: Cartridge
• Output Seals: Dual
• Large input bearings
• Thicker output flange for added strength
• Enhanced gear material for increased load capacity and reduced wear
• Full-cycle external expansion chamber with stainless steel cover
• External input and output seal protectors
• Top oil fill plug
• Filled with extreme-pressure gear oil
• Extra-long carriage bolts for use with reinforced rims
• Positive wheel register
