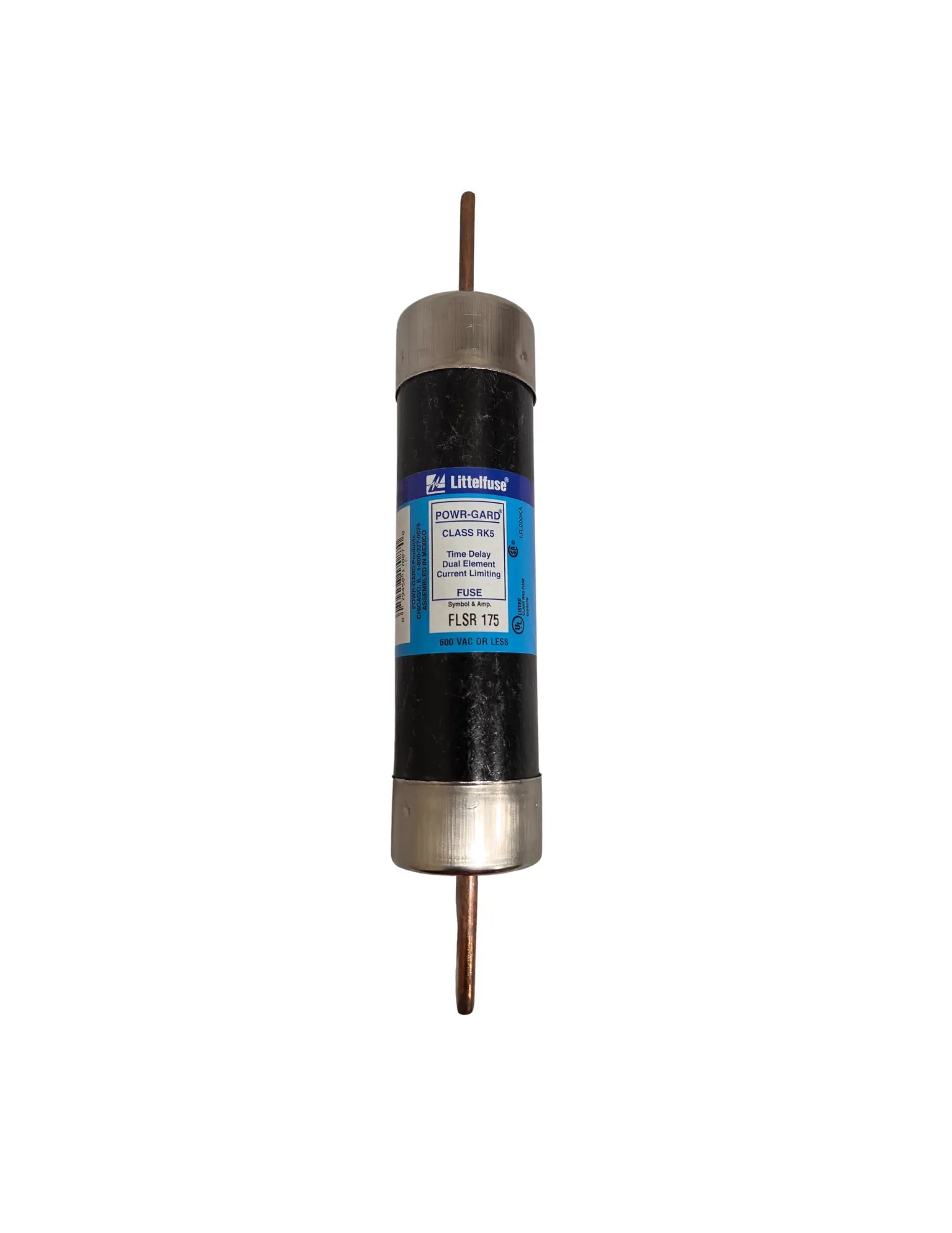

Littelfuse FLSR 175Amp Time-Delay Fuse – 600V

The Littelfuse FLSR175 Fuse is a 175 Amp Class RK5 dual-element time-delay fuse designed for circuit protection in electrical systems. Part of the Littelfuse FLSR Series, it features knife-blade construction and time-delay operation to accommodate temporary current surges while providing protection against sustained overloads and short circuits.

The FLSR175 is rated for 600V AC and 300V DC, with a 20kA interrupting rating at 300V DC.

Specifications

• Brand: Littelfuse
• Model: FLSR175
• Series: FLSR
• Fuse Class: RK5
• Amperage: 175A
• Maximum AC Voltage: 600V
• Maximum DC Voltage: 300V
• Interrupting Rating: 20kA @ 300V DC
• Fuse Type: Dual-Element, Time-Delay
• Indication: Non-Indicating
