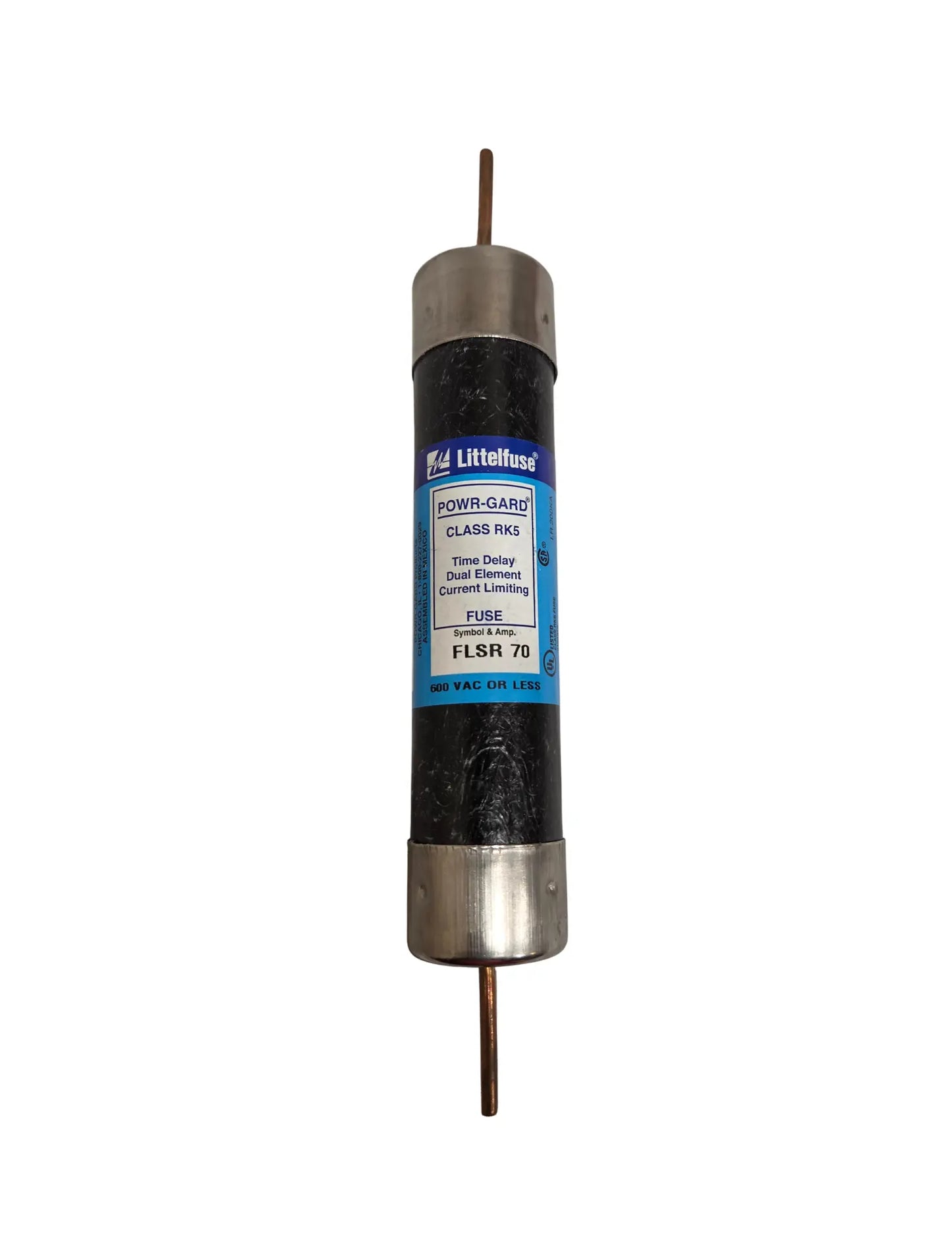

Littelfuse FLSR 70Amp Time-Delay Fuse – 600V

The Littelfuse FLSR070 Fuse is a 70 Amp Class RK5 dual-element time-delay fuse designed for reliable circuit protection in electrical systems. Part of the Littelfuse FLSR Series, it features knife-blade construction and time-delay operation to accommodate temporary current surges while protecting against sustained overloads and short circuits.

The FLSR070 is rated for 600V AC and 300V DC, with a 20kA interrupting rating at 300V DC.

Specifications

• Brand: Littelfuse
• Model: FLSR070
• Series: FLSR
• Fuse Class: RK5
• Amperage: 70A
• Maximum AC Voltage: 600V
• Maximum DC Voltage: 300V
• Fuse Type: Dual-Element, Time-Delay
• Construction: Knife-Blade
• Indication: Non-Indicating
