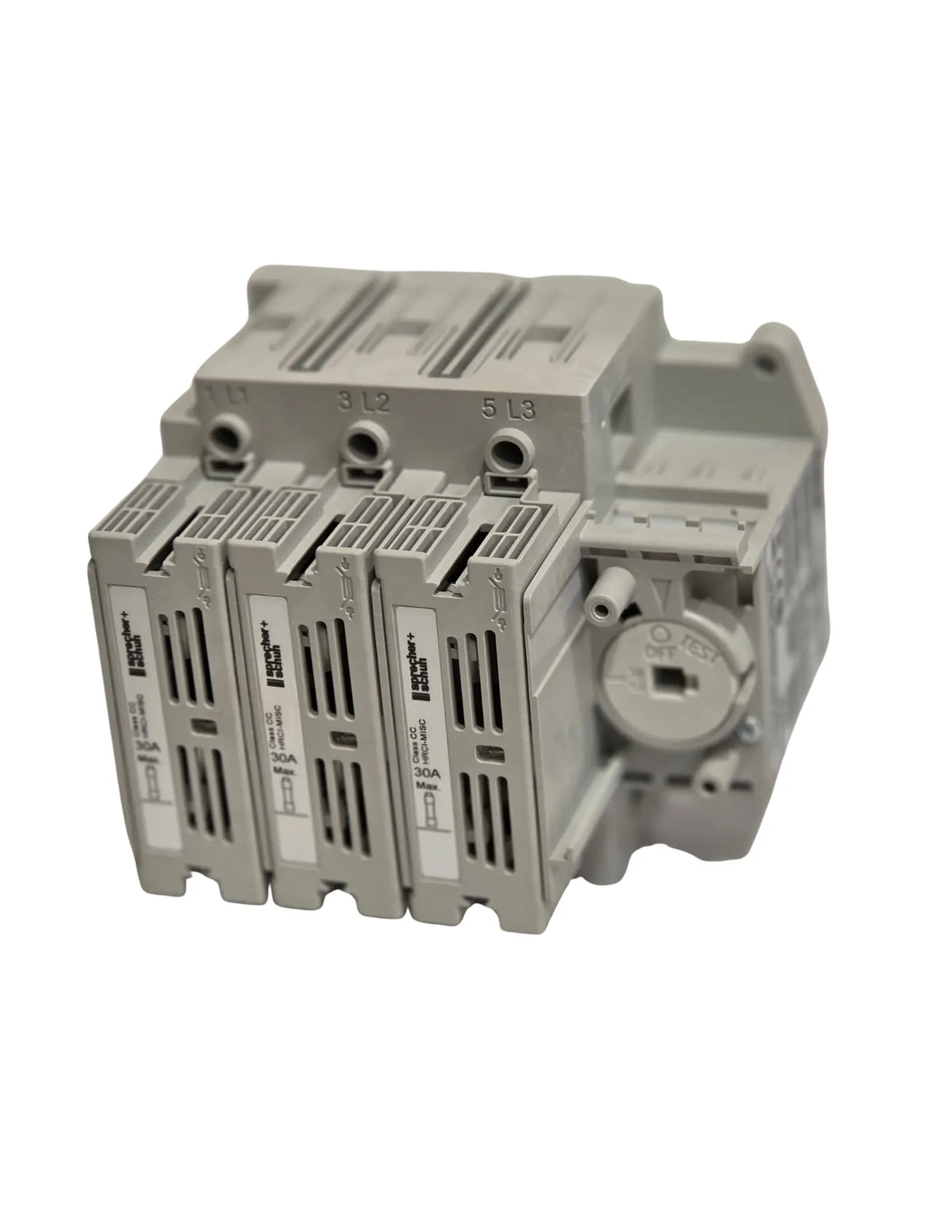

Disconnect Main Switch - 194R - 3 pole

The 194R Disconnect Main Switch is a 30-amp, 3-pole fused disconnect switch designed to provide a means of disconnecting electrical power to machinery and equipment. Its pistol-style handle provides clear manual operation, while the fused design adds circuit protection when used with compatible fuses.

This switch supports operating voltages up to 600 VAC and 250 VDC and can be mounted on a panel or DIN rail. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact and accepts 14–12 AWG conductors.

Specifications:

• Series: 194R
• Current Rating: 30A
• Poles: 3
• Type: Fused, open
• Voltage Rating: 600 VAC / 250 VDC

• Auxiliary Contacts: 1 NO / 1 NC
• Fuse Type: Class CC / HRCI-MISC
• Wire Size: 14–12 AWG
• Mounting: Panel / DIN rail
